Universal 8 Sensor Reverse Parking System for Safer Front and Rear Parking
Make parking easier and safer with this Universal 8 Sensor Reverse Parking System, designed to provide front and rear obstacle detection with camera-assisted visual support. Featuring 8 parking sensors, a dual-core control box, front and rear camera integration, and real-time distance display, this system helps drivers detect nearby obstacles more accurately when reversing or maneuvering in tight spaces.
Suitable for a wide range of vehicles, this parking sensor kit is designed to improve awareness around the front and rear of the car and reduce the stress of everyday parking.
Key Features
8 Sensor Detection for Front and Rear Coverage
This system uses 8 sensors in total:
-
4 front sensors
-
4 rear sensors
The multi-sensor design helps provide broader detection coverage around the vehicle, making it easier to identify obstacles when parking or moving at low speed.
Front and Rear Camera Support
The parking system supports both:
-
Front camera
-
Rear view camera
The diagram shows the system automatically switching image display depending on driving conditions, helping the driver view the relevant direction when obstacles are detected. (Please Note: It only support on aftermarket Head unit)
Real-Time Obstacle Distance Display
When the system is triggered, the monitor displays the distance to nearby obstacles on screen, helping the driver judge available space more clearly.
According to the diagram:
-
rear obstacle distance is displayed when reversing
-
front obstacle distance is displayed when braking, and an object is detected ahead
Dual-Core Parking Reversing Sensor System
The kit is described as an 8 Sensors Dual Core Parking Reversing Sensor system, designed to manage both front and rear detection with camera and buzzer support.
This makes it suitable for vehicles needing more complete parking assistance than a standard rear-only sensor setup.
Buzzer Warning Alert
The system includes a buzzer alarm to provide audible warnings when obstacles are detected, helping drivers react faster while parking or maneuvering.
Working Principle
Based on the diagram, the product works as follows:
1. Reverse Gear Activated
When the vehicle is shifted into reverse:
-
The reversing light turns on
-
The 4 rear sensors are activated
-
The rear-view camera is triggered
-
the distance to the rear obstacle is shown on screen automatically
2. Brake Pedal Pressed
When the brake pedal is pressed:
-
The brake light turns on
-
if there is an obstacle within 1.5 meters in front of the vehicle, the 4 front sensors and front-view camera are activated
-
The distance to the front obstacle is displayed automatically
-
If there is no obstacle within 1.5 meters, only the front image is displayed
3. Reverse Gear + Brake Pedal at the Same Time
When reverse gear is engaged, and the brake pedal is pressed simultaneously:
-
only the 4 rear sensors and rear view camera work
Detection Range
The product information in the image shows:
-
Front radar detection: 1.5 meters
-
Rear radar detection: 2 meters
This helps provide short-range parking assistance where it matters most.
Sensor Size Options
The diagrams show two sensor size options:

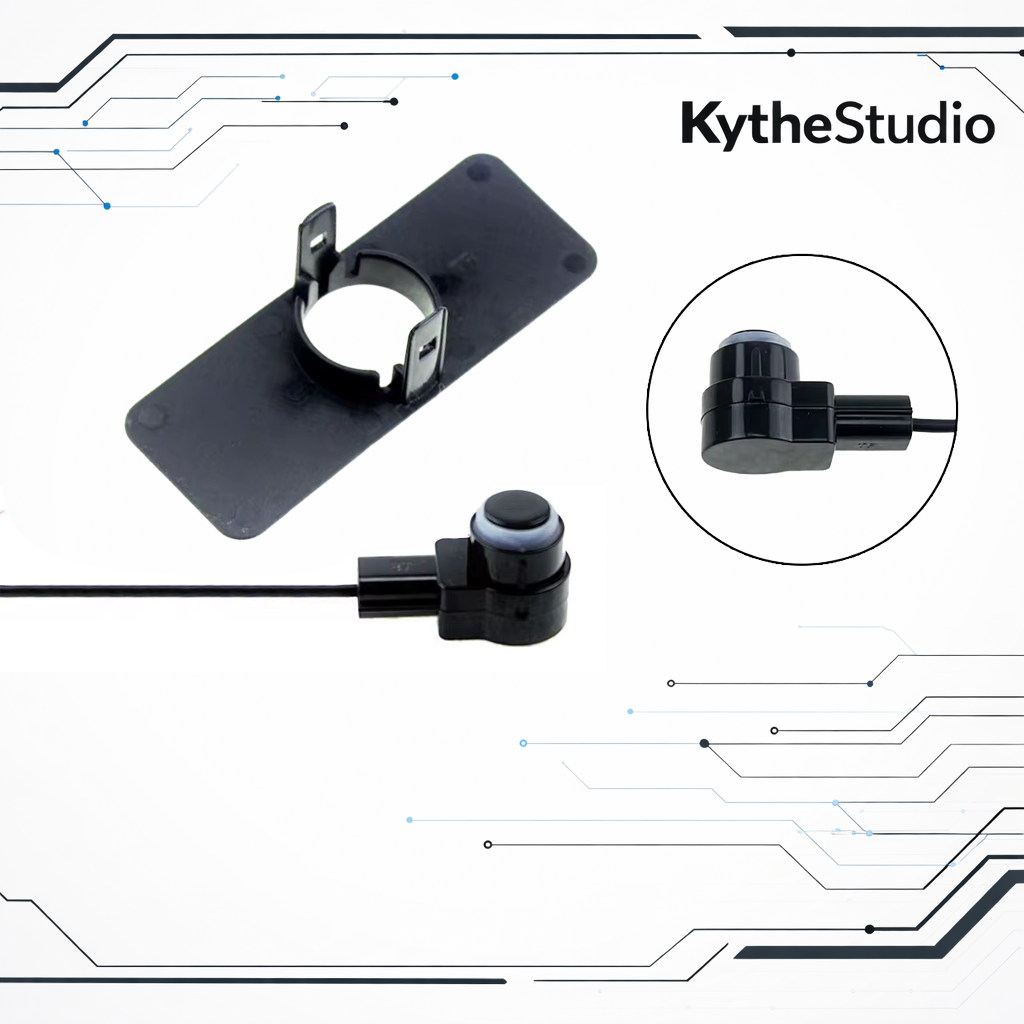

16.5mm Flat Parking Sensor
-
flat style design
-
approx. 16.5mm sensor size
-
shown with slim external profile
-
example dimensions shown: 78mm x 30mm, center section 16.5mm
Installation Information
The installation diagram shows connection support for:
-
4 front sensors
-
4 rear sensors
-
front camera
-
rear view camera
-
buzzer
-
monitor
-
power and control wiring
The product is designed for universal installation and can be connected to compatible monitors and navigation displays.
The image notes:
-
3.5-inch and 4.3-inch monitors do not have a reversing control line, so no extra control wire is needed

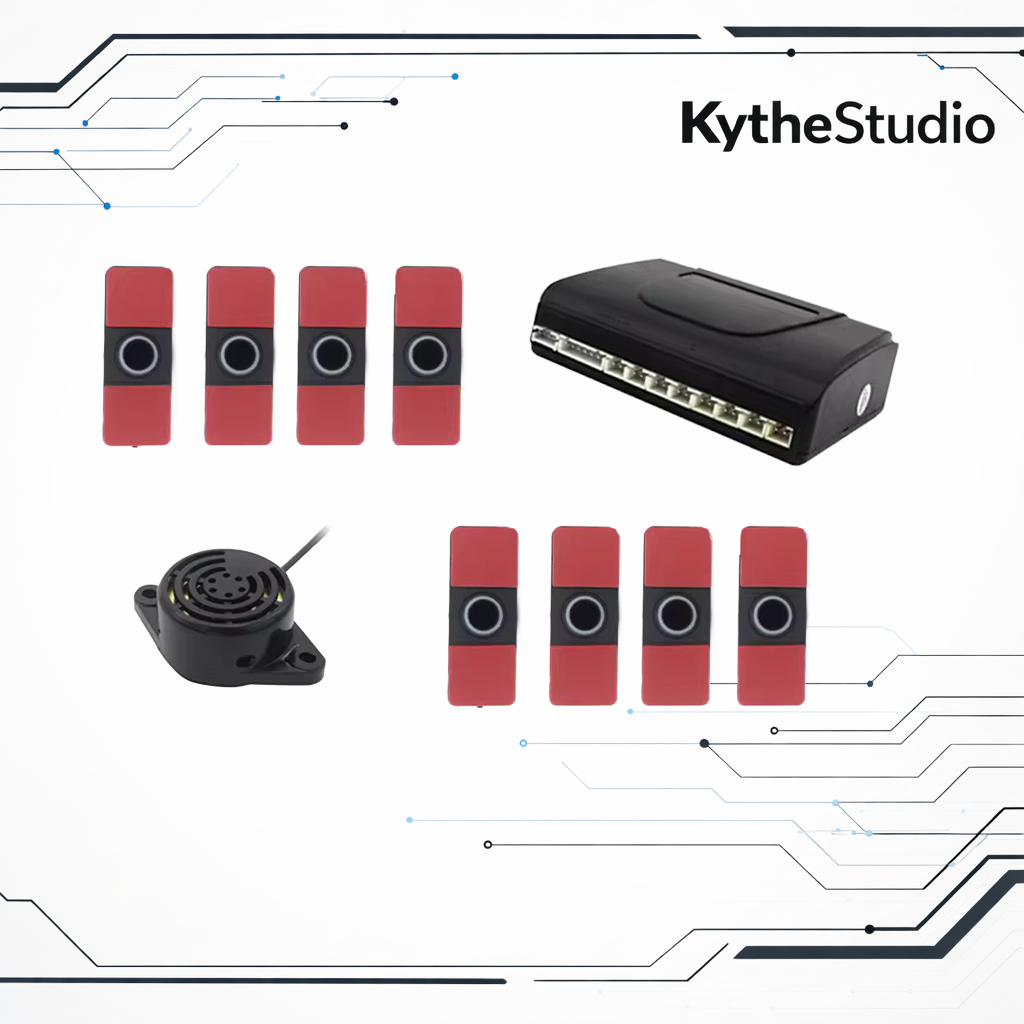

What’s Included
Based on the diagrams, the system includes or supports:
-
8 parking sensors
-
dual-core control box
-
buzzer
-
front camera support (Display is not included)
-
rear camera support(Display is not included)
-
wiring harness
-
sensor size 16.5mm
Why Choose This Universal Reverse Parking Sensor System?
-
8-sensor front and rear obstacle detection
-
camera-assisted parking support
-
automatic front and rear image triggering
-
real-time obstacle distance display
-
buzzer warning alert
-
front detection up to 1.5m
-
rear detection up to 2m
-
universal vehicle fitment
-
available 16.5mm and 22mm sensor options
Ideal For
This parking sensor kit is ideal for:
-
sedans
-
hatchbacks
-
SUVs
-
drivers who want front and rear parking assistance
-
vehicles needing upgraded reversing support
-
users installing aftermarket parking cameras and monitors
Park with More Confidence
The Universal 8 Sensor Reverse Parking System helps improve visibility, obstacle awareness, and parking precision with combined sensor detection, buzzer alerts, and front/rear camera support. Whether reversing into tight spaces or monitoring obstacles ahead, this system gives drivers added confidence and convenience.
